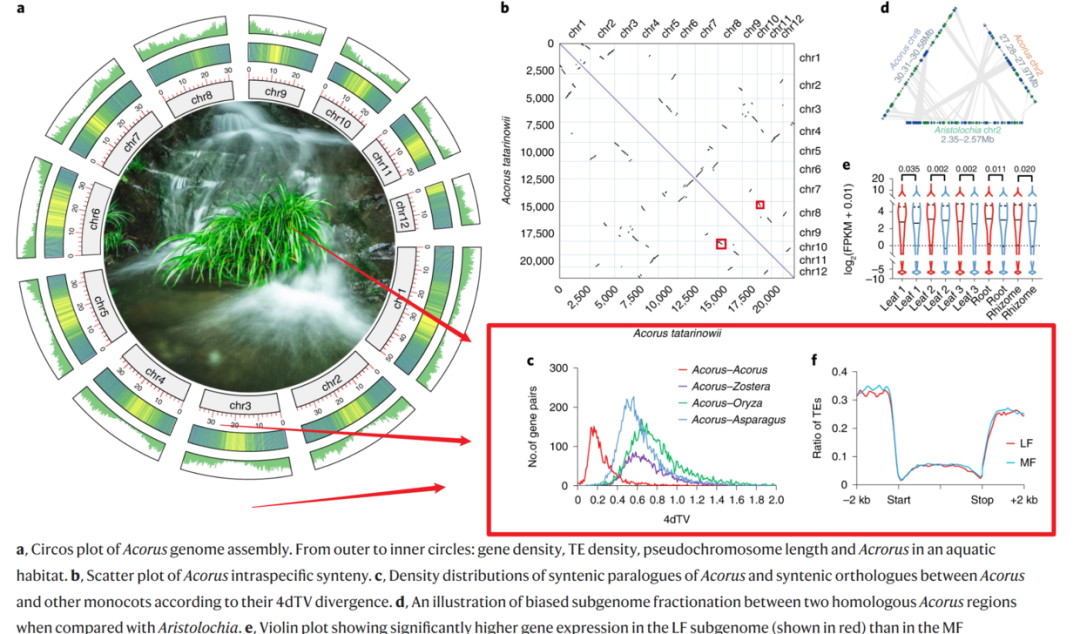

跟着NaturePlants学作图：R语言ggplot2分组折线图完整示例

library(readxl)

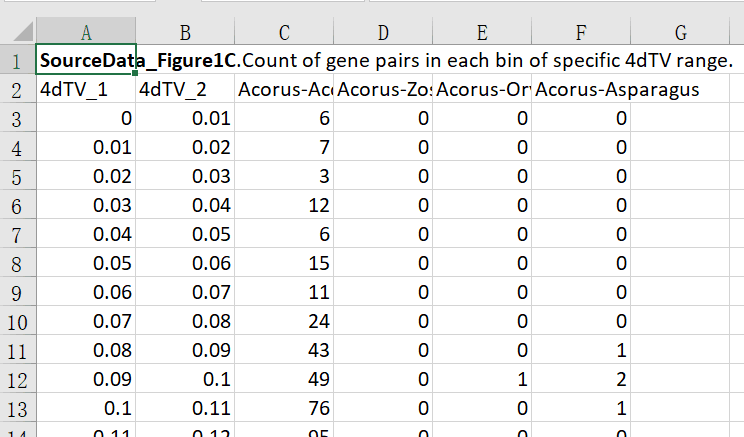

datf3c<-read_excel("data/20220807/41477_2022_1187_MOESM4_ESM.xlsx",
                   sheet = "Fig.1C",
                   skip = 1)
head(datf3c)

library(tidyverse)
datf3c %>%
  select(-'4dTV_1') %>%
  pivot_longer(-'4dTV_2') %>%
  mutate(name = fct_relevel(name,c("Acorus-Acorus",
                                   "Acorus-Zostera",
                                   "Acorus-Oryza",
                                   "Acorus-Asparagus"))) -> new.datf3c

#install.packages("latex2exp")
library(latex2exp)

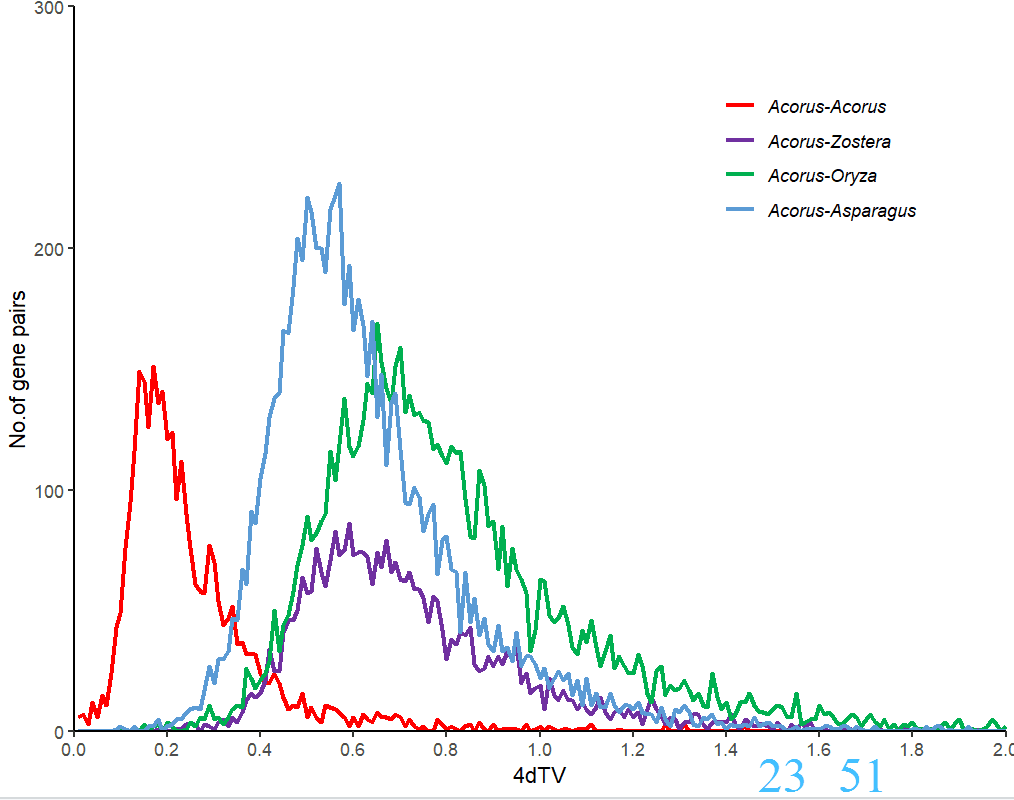

ggplot(data=new.datf3c,
       aes(x=`4dTV_2`,y=value,color=name))+
  geom_line(size=1)+
  scale_color_manual(values = c("#ff0000","#7030a0",
                                "#00b050","#5b9bd5"),
                     name=NULL)+
  theme_classic()+
  theme(legend.position = c(0.8,0.8),
        legend.text = element_text(face = "italic"))+
  scale_x_continuous(expand = expansion(mult = c(0,0)),
                     limits = c(0,2),
                     breaks = seq(0,2,0.2))+
  scale_y_continuous(expand = expansion(mult = c(0,0)),
                     limits = c(0,300))+
  labs(x="4dTV",y="No.of gene pairs") -> p1
p1

datf3f<-read_excel("data/20220807/41477_2022_1187_MOESM4_ESM.xlsx",
                   sheet = "Fig.1F",
                   skip = 1)
head(datf3f)

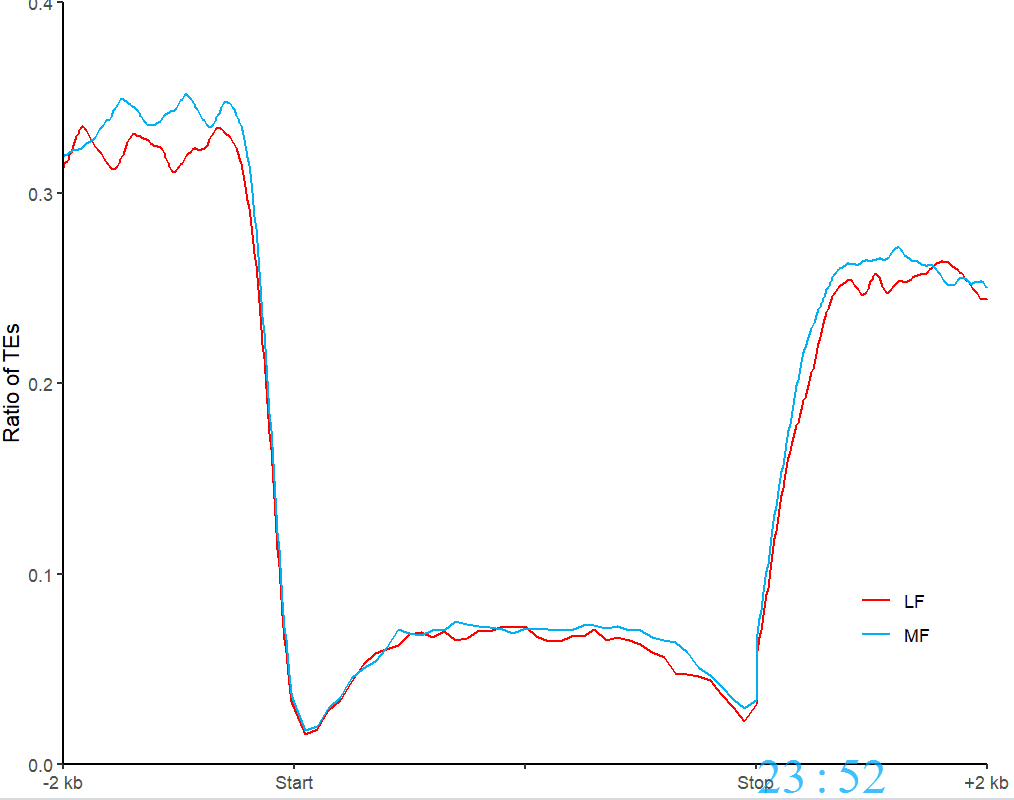

datf3f %>%
  pivot_longer(-"Distance to Gene Start") %>%
  ggplot(aes(x=`Distance to Gene Start`,
             y=value,
             color=name))+
  geom_line()+
  scale_color_manual(values = c("#ff0000","#00b0f0"))+
  theme_classic()+
  theme(legend.position = c(0.9,0.2),
        plot.margin = unit(c(0.1,0.5,0.1,0.1),'cm'),
        legend.title = element_blank())+
  scale_x_continuous(expand = expansion(mult = c(0,0)),
                     labels = c("-2 kb","Start","",
                                "Stop","+2 kb"))+
  scale_y_continuous(expand = expansion(mult = c(0,0)),
                     limits = c(0,0.4))+
  labs(x=NULL,y="Ratio of TEs") -> p2
p2

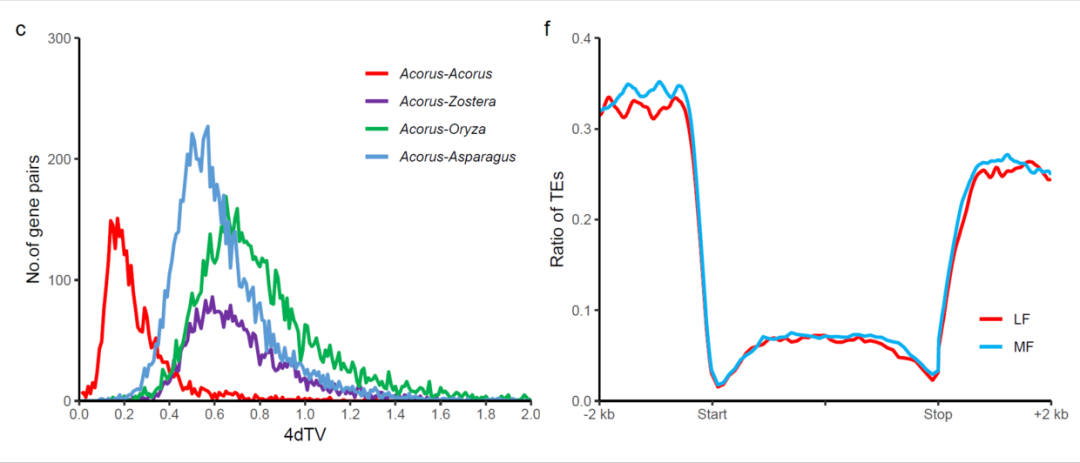

p1+p2+
  plot_annotation(tag_levels = list(c("c","f")))
